GVV

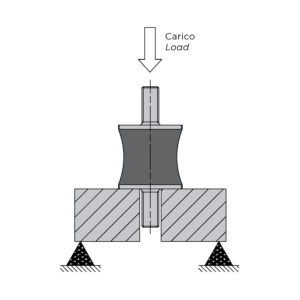

A range of standard mounts, suitable for use on any application where a Male/Male thread is required, with a waisted design that provides enhanced lateral movement. Available in various sizes between 10 and 60 mm, these mounts can accept loads up to over 200 Kg.
- TECHNICAL FEATURES
- MATERIALS AND APPLICATIONS
- DOWNLOAD
TECHNICAL FEATURES

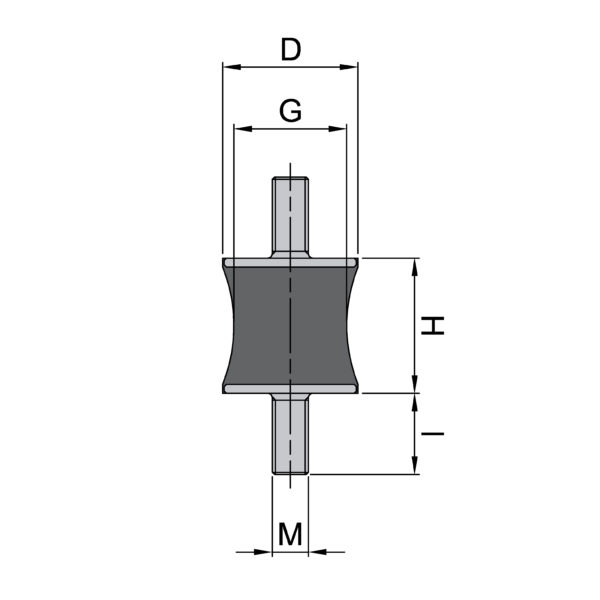

| Codice | D | H | G | M x I | Axial stiffness 45 IRHD (Kg/mm) |
Shear stiffness 45 IRHD (Kg/mm) |
Axial stiffness 60 IRHD (Kg/mm) |
Shear stiffness 60 IRHD (Kg/mm) |
Axial stiffness 70 IRHD (Kg/mm) |
Shear stiffness 70 IRHD (Kg/mm) |
Max. axial static deflection (mm) |
Max. shear static deflection (mm) |
| 1015GVV410 | 10 | 15 | 6 | M4X10 | 1,4 | 0,2 | 1,8 | 0,3 | 2,6 | 0,4 | 2,0 | 2,0 |
| 1615GVV510 | 16 | 15 | 12,5 | M5X10 | 3,8 | 0,7 | 6,5 | 1,3 | 9,0 | 1,9 | 1,7 | 1,7 |
| 2019GVV18 | 20 | 19 | 14,5 | M6X18 | 4,4 | 0,9 | 7,3 | 1,6 | 10,3 | 2,4 | 1,8 | 1,6 |
| 2520GVVP18 | 25 | 20 | 10 | M6X18 | 2,4 | 0,5 | 3,7 | 0,8 | 5,3 | 1,2 | 1,8 | 1,8 |
| 2520GVVG18 | 25 | 20 | 17 | M6X18 | 5,9 | 1,2 | 10,2 | 2,2 | 13,3 | 3,4 | 1,8 | 1,8 |
| 3020GVV20 | 30 | 20 | 24 | M8X20 | 11,5 | 2,3 | 18,4 | 4,2 | 25,4 | 6,4 | 2,0 | 2,0 |
| 4030GVVP23 | 40 | 30 | 15 | M8X23 | 3,7 | 0,7 | 5,9 | 1,3 | 8,5 | 1,9 | 2,7 | 2,6 |
| 4030GVVG23 | 40 | 30 | 27 | M8X23 | 9,3 | 2,0 | 15,4 | 3,5 | 21,9 | 5,4 | 2,7 | 2,6 |
| 6060GVV25 | 60 | 60 | 50 | M10X25 | 12,1 | 2,3 | 20,1 | 4,1 | 29,3 | 6,1 | 7,5 | 7,5 |
APPLICATIONS
Measurement equipment, instruments, small machinery, electric engines, pumps, radiators
STANDARD PRODUCTION
Bobbin mounts can be made with different metal parts, manufactured with different processes:
Cold formed screws — Class 4.8
Welded screws — Washers: DD12 steel UNI EN 10111 – Screws: class 4.8
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
NEOPREN CR and anti-oil NBR rubber
Stainless steel version
Screws with a higher resistance class
Screws with a specific length in accordance to customer’s drawing
