6051CN

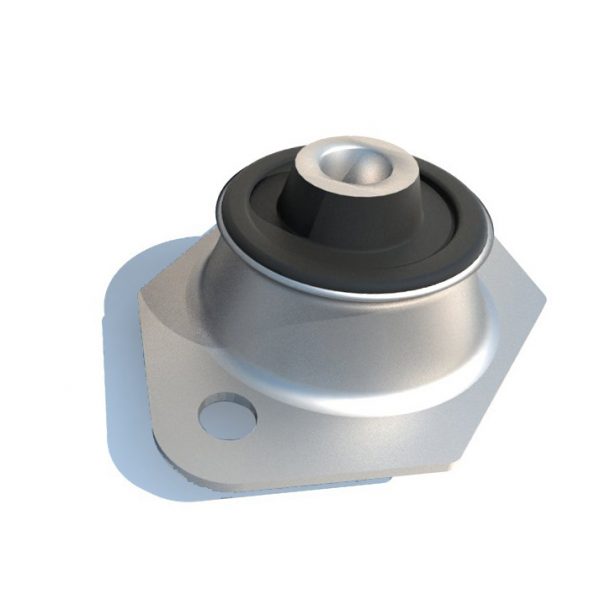

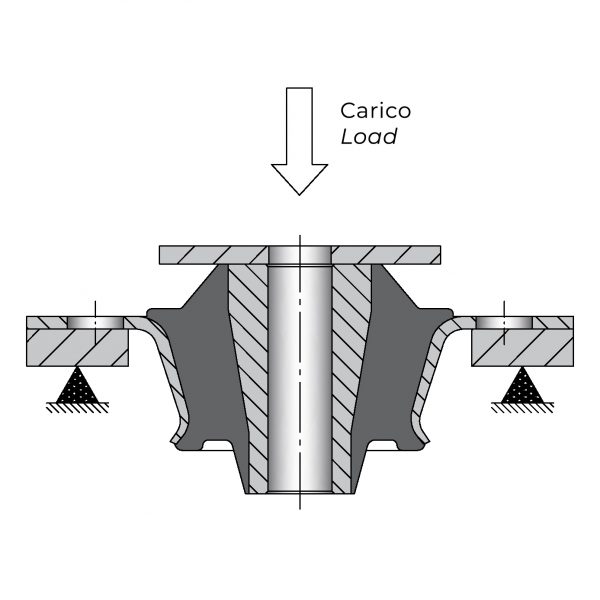

These mounts have a particular rubber section made for shear and compression stresses which allow good axial deflections. Cone mounts have high load carrying capacity within a compact size that provides a stable solution for a wide number of applications. The mounts are assembled with two safety washers to minimize overloads.
- Beschreibung
- MATERIALS AND APPLICATIONS
Beschreibung

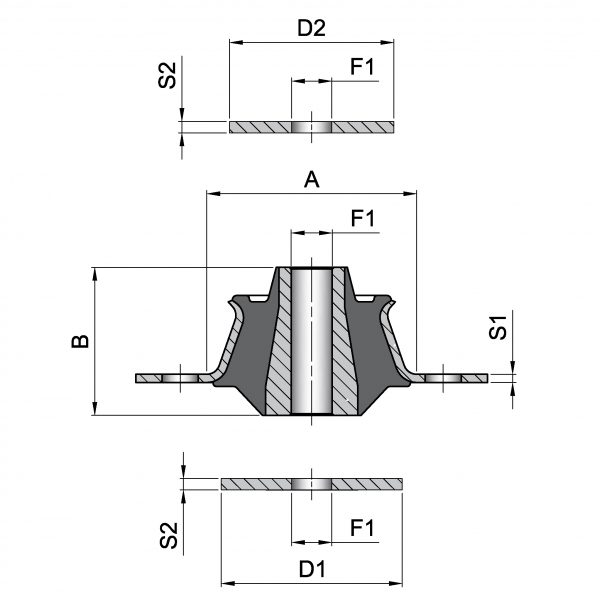

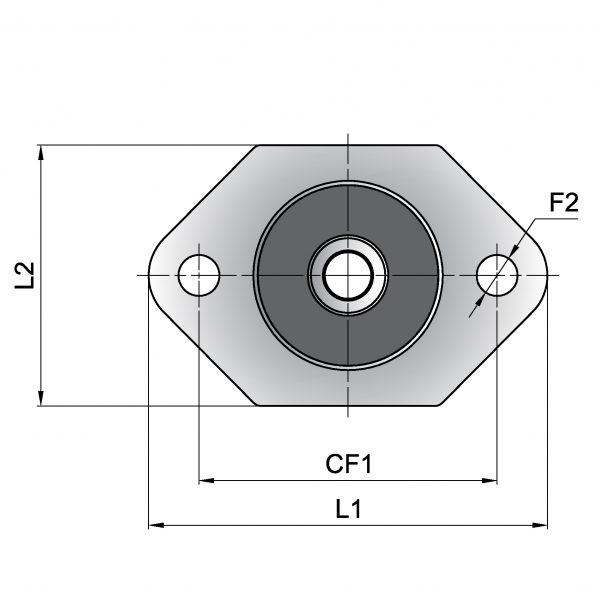

| Cone | Washers | ||||||||||||||||
| Item | Hardness (IRHD) |
A | B | CF1 | CF2 | L1 | L2 | F1 | S1 | F2 | D1 | D2 | S2 | F1 | Average stiffness (Kg/mm) |
Max. load (Kg) |
Max. deflection (mm) |
| 6051CN12W | 45 | 60 | 45 | 80 | – | 107 | 68 | 12,1 | 2,5 | 11 | 55 | 50 | 3,5 | 12,2 | 20 | 100 | 5 |
| 6051CN12M | 60 | 60 | 45 | 80 | – | 107 | 68 | 12,1 | 2,5 | 11 | 55 | 50 | 3,5 | 12,2 | 34 | 170 | 5 |
| 6051CN12H | 70 | 60 | 45 | 80 | – | 107 | 68 | 12,1 | 2,5 | 11 | 55 | 50 | 3,5 | 12,2 | 50 | 250 | 5 |
The item code means the cone mount with washers; it is possible to order only the cone mount.
APPLICATIONS
Gensets, engines, special equipments, compressors, pumps, HVAC
STANDARD PRODUCTION
Cone and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Washers: DD12 steel (UNI 10111)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
Alternative elastomeric compounds available
