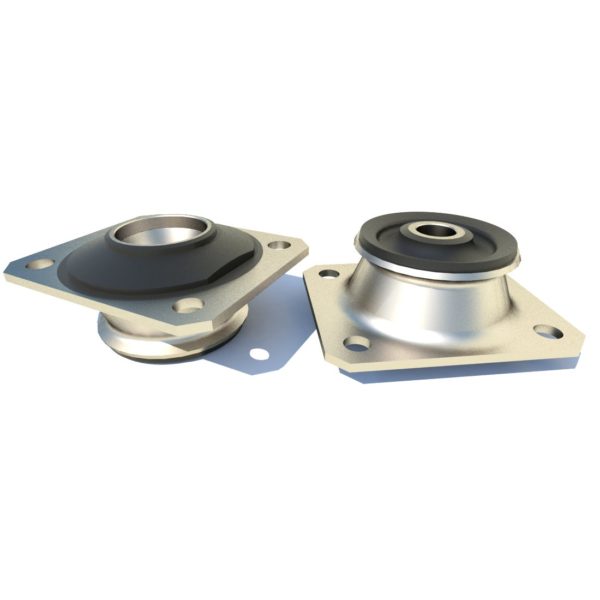

7856CN
These mounts have a particular rubber section made for shear and compression stresses which allow good axial deflections. Cone mounts have high load carrying capacity within a compact size that provides a stable solution for a wide number of applications. The mounts are assembled with two safety washers to minimize overloads.
- Beschreibung
- MATERIALS AND APPLICATIONS
Beschreibung
Cone | Washers | ||||||||||||||||
Item | Hardness (IRHD) |

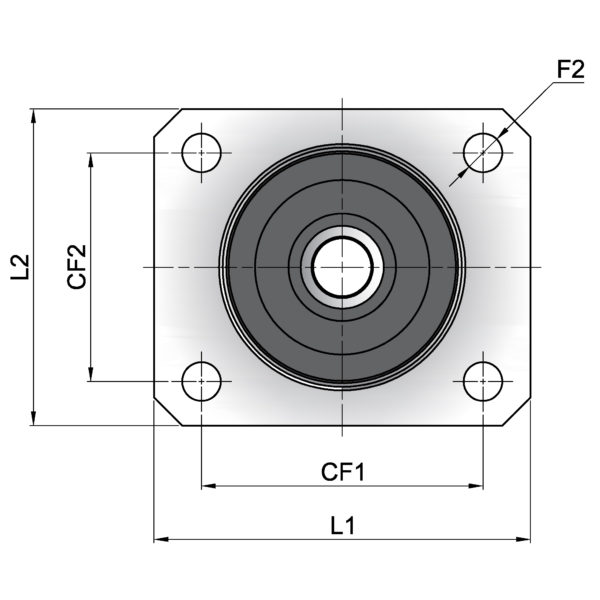

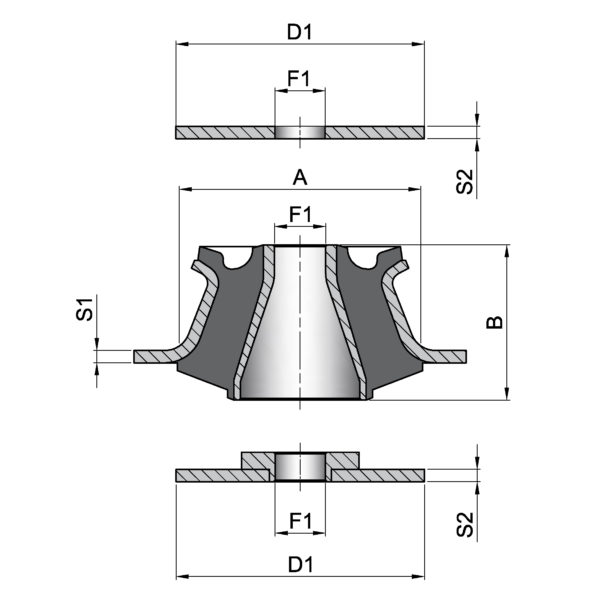

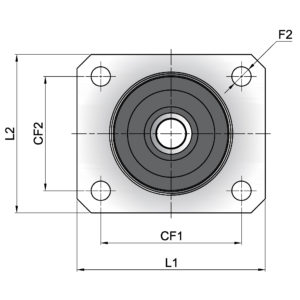

A | B | CF1 | CF2 | L1 | L2 | F1 | S1 | F2 | D1 | D2 | S2 | F1 | Average stiffness (Kg/mm) |
Max. load (Kg) |
Max. deflection (mm) |
7856CN16W | 45 | 78 | 50 | 80 | 65 | 107 | 90 | 16.5 | 4 | 11 | 80 | 65 | 4 | 16 | 32 | 160 | 5 |
7856CN16M | 60 | 78 | 50 | 80 | 65 | 107 | 90 | 16.5 | 4 | 11 | 80 | 65 | 4 | 16 | 60 | 350 | 5 |
7856CN16H | 70 | 78 | 50 | 80 | 65 | 107 | 90 | 16.5 | 4 | 11 | 80 | 65 | 4 | 16 | 98 | 488 | 5 |
The item code means the cone mount with washers; it is possible to order only the cone mount.

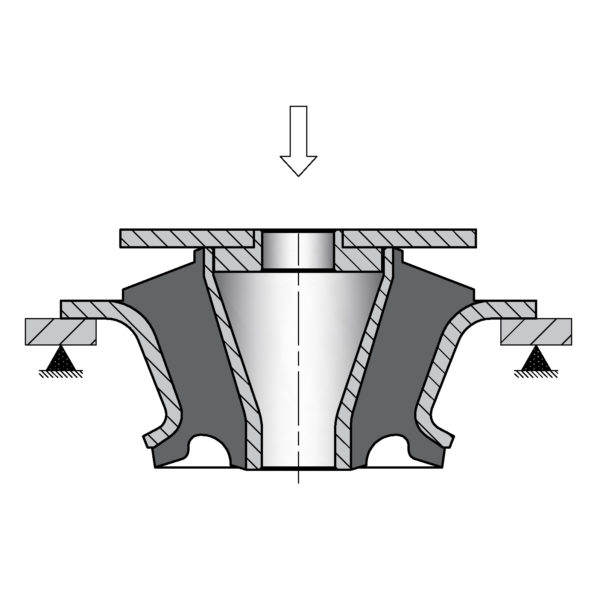

For the right working of the mount, the cone must be assembled with the centering washer.
APPLICATIONS
Gensets, engines, special equipments, compressors, pumps, HVAC
STANDARD PRODUCTION
Cone and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Washers: DD12 steel (UNI 10111)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
Alternative elastomeric compounds available
