9381CN

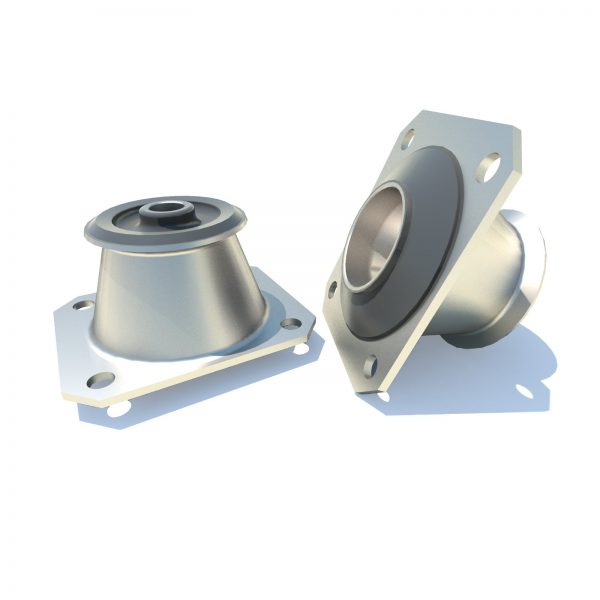

These mounts have a particular rubber section made for shear and compression stresses which allow good axial deflections. Cone mounts have high load carrying capacity within a compact size that provides a stable solution for a wide number of applications. The mounts are assembled with two safety washers to minimize overloads.

Beschreibung

Cone Washers
Item Hardness
(IRHD)

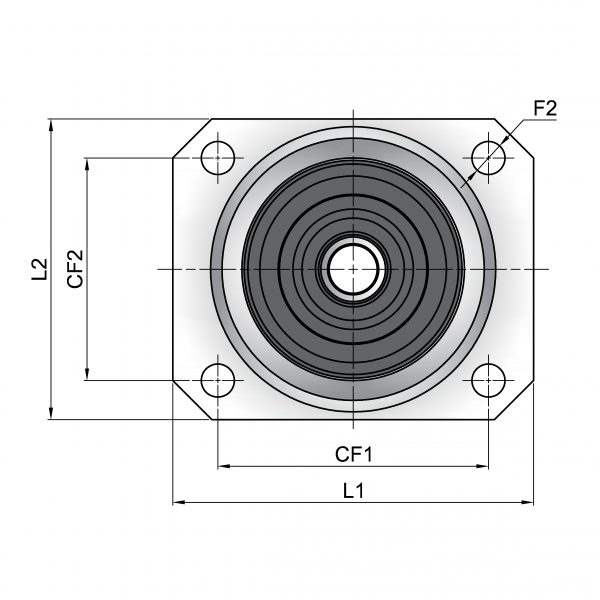

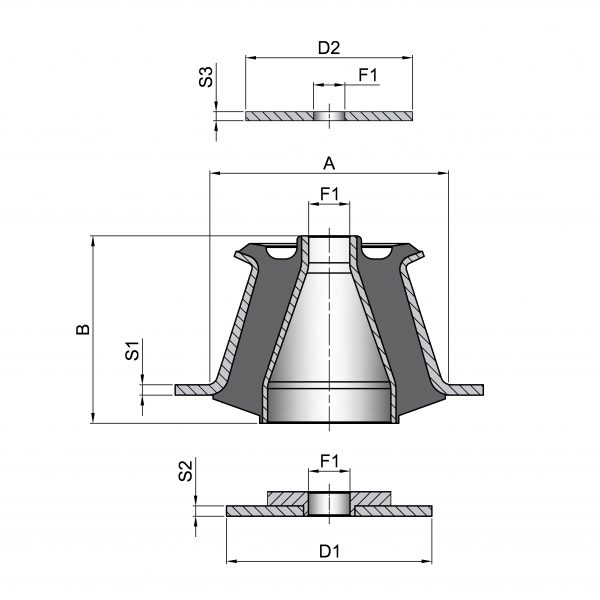

A B CF1 CF2 L1 L2 F1 S1 F2 D1 D2 S2 F1 Average
stiffness
(Kg/mm)
Max.
load
(Kg)
Max.
deflection
(mm)
9381CN16W 45 93 73 90 74 16 11 4 120 100 85 70 5 4 75 450 6
9381CN16M 60 93 73 90 74 16 11 4 120 100 85 70 5 4 140 840 6
9381CN16H 70 93 73 90 74 16 11 4 120 100 85 70 5 4 235 1410 6

The item code means the cone mount with washers; it is possible to order only the cone mount.

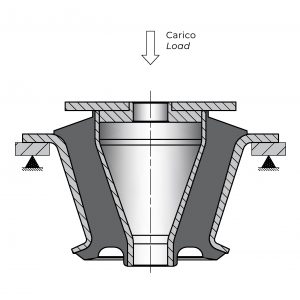

For the right working of the mount, the cone must be assembled with the centering washer.

APPLICATIONS
Gensets, engines, special equipments, compressors, pumps, HVAC

STANDARD PRODUCTION
Cone and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Washers: DD12 steel (UNI 10111)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%

OPTIONS AND ADDITIONAL PARTS
Alternative elastomeric compounds available
