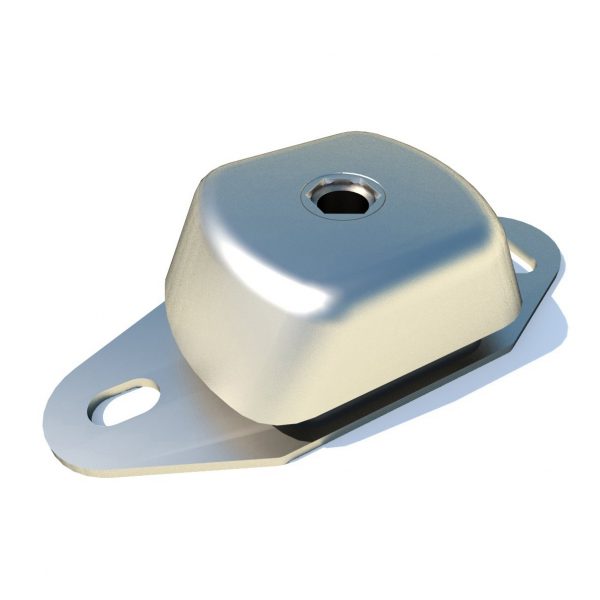

CCFQ

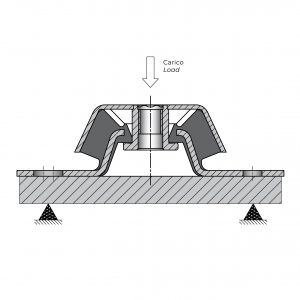

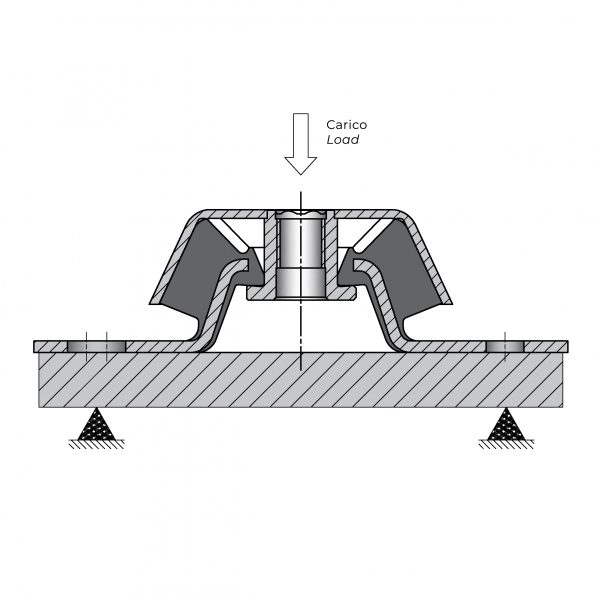

These mounts offer a low profile, easy to install design with an integral fail-safe device to provide shock and failure protection for mobile, marine or seismic stationary application and for applications where safety is paramount. When the rubber works in shear and compression it provides large static deflections, low natural frequency (to 8 Hz) and high isolation. Our CCFQ range can accommodate loads between 9 kg to 880 kg per mount.
- Beschreibung
- MATERIALS AND APPLICATIONS
Beschreibung

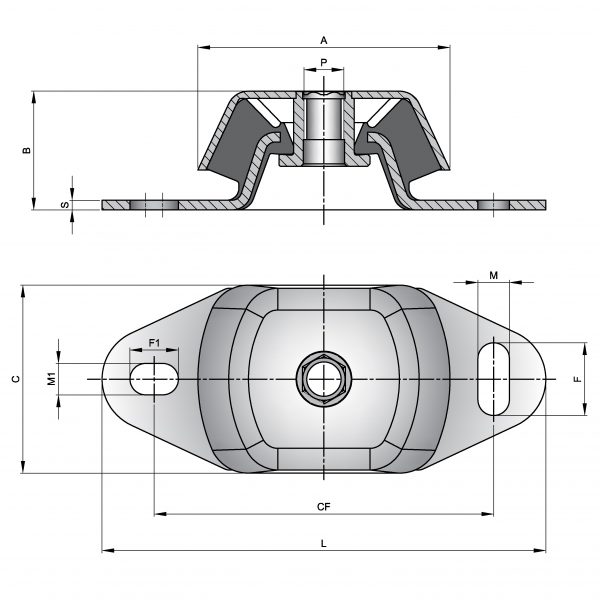

| Item | Hardness (IRHD) |
A | B | C | P | FxM (F1xM1) |
CF | L | S | Average stiffness (Kg/mm) |
Max. load (Kg) |
Max. deflection (mm) |
| CCFQ804012W | 45 | 80 | 38 | 60 | M12 | 14X11 | 100 | 120 | 3 | 9 | 36 | 4 |
| CCFQ804012K | 50 | 80 | 38 | 60 | M12 | 14X11 | 100 | 120 | 3 | 13 | 52 | 4 |
| CCFQ804012M | 60 | 80 | 38 | 60 | M12 | 14X11 | 100 | 120 | 3 | 16 | 64 | 4 |
| CCFQ804012H | 70 | 80 | 38 | 60 | M12 | 14X11 | 100 | 120 | 3 | 24 | 96 | 4 |
| CCFQ1045016XW | 35 | 104 | 49 | 75 | M16 | 30X13 (20X13) | 140 | 183 | 4 | 16 | 80 | 5 |
| CCFQ1045016W | 45 | 104 | 49 | 75 | M16 | 30X13 (20X13) | 140 | 183 | 4 | 24 | 120 | 5 |
| CCFQ1045016M | 60 | 104 | 49 | 75 | M16 | 30X13 (20X13) | 140 | 183 | 4 | 38 | 190 | 5 |
| CCFQ1045016H | 70 | 104 | 49 | 75 | M16 | 30X13 (20X13) | 140 | 183 | 4 | 60 | 300 | 5 |
| CCFQ1045016XH | 80 | 104 | 49 | 75 | M16 | 30X13 (20X13) | 140 | 183 | 4 | 95 | 475 | 5 |
| CCFQ1307020W | 45 | 132 | 71 | 112 | M20 | 34X18 (26X18) | 182 | 230 | 5 | 55 | 330 | 6 |
| CCFQ1307020M | 60 | 132 | 71 | 112 | M20 | 34X18 (26X18) | 182 | 230 | 5 | 90 | 540 | 6 |
| CCFQ1307020H | 70 | 132 | 71 | 112 | M20 | 34X18 (26X18) | 182 | 230 | 5 | 135 | 810 | 6 |
| CCFQ1307020XH | 80 | 132 | 71 | 112 | M20 | 34X18 (26X18) | 182 | 230 | 5 | 220 | 880 | 4 |
FIBET bell mounts can withstand up to 2g of shock forces or 5g occasional shock forces, with regards to the load, without permanent deformation or failing.
APPLICATIONS
Gensets, marine power engines, diesel engines, pumps, HVAC
STANDARD PRODUCTION
Bell and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Fail-safe device: 11SMnPb37 (UNI EN 10087)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
Stainless steel version
Height adjuster
