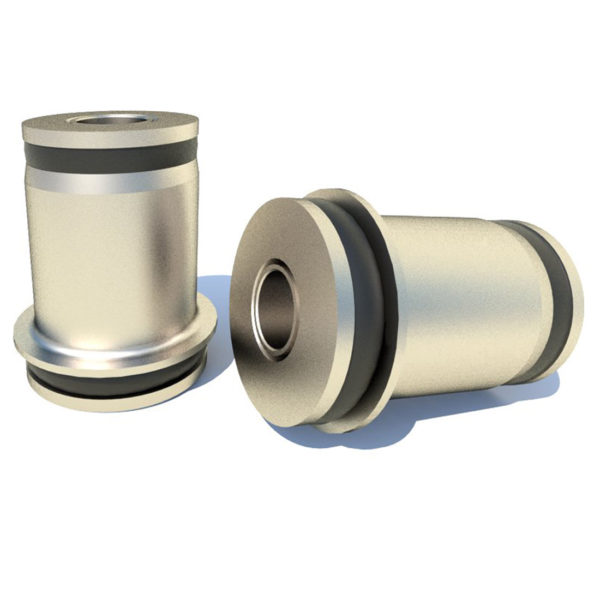

FBF Type 1
Versatile bushes that provide the ability to extend service life of suspension components in vehicular applications. The FBF bushes are designed and constructed using different materials and are shaped to provide a maintenance-free function by outlasting the predicted life of leaf spring and suspensions in automotive application. More technical data are available on the downloadable datasheets.
- Beschreibung
- MATERIALS AND APPLICATIONS
Beschreibung
| Item | Standard Hardness (IRHD) |
d | D | I | L | RADIAL | TORSIONAL | ||
| Average Stiffness (kg/mm) |
Max Deflection (mm) |
Average Stiffness (Nm/°) |
Max Angle (°degrees) |
||||||
| FBF1230.2645 | 65 | 12 | 30 | 26 | 45,5 | 357 | 0,8 | 1,2 | 30 |
| FBF1230.3147 | 65 | 12 | 30 | 31 | 47 | 462 | 0,8 | 1,4 | 30 |
APPLICATIONS
Flexible joints, motor vehicles, earth moving machinery, general machinery & equipment
STANDARD PRODUCTION
Fe 360 steel (ISO 3305/3306)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
Alternative elastomeric hardness and compounds
