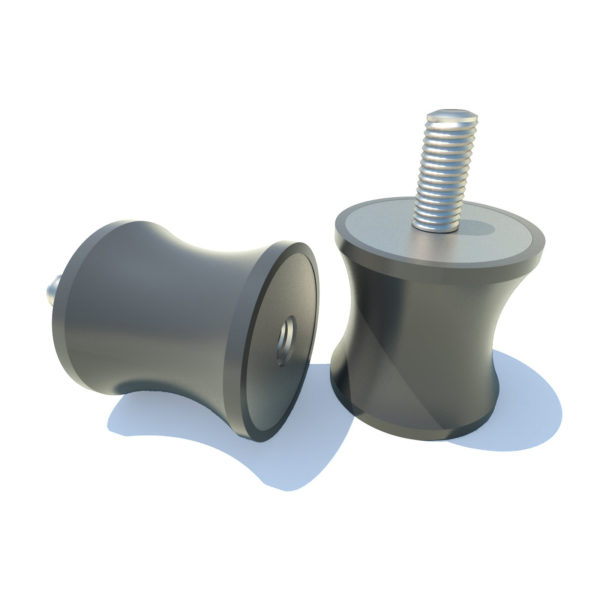

GVD

A range of standard mounts, suitable for use on any application where a Male/Female thread is required, with a waisted design that provides enhanced lateral movement. Available in various sizes between 10 and 60 mm, these mounts can accept loads up to over 200 Kg.

Beschreibung
MATERIALS AND APPLICATIONS

Beschreibung

Codice	D	H	G	d	M x I	Axial stiffness 45 IRHD (Kg/mm)	Shear stiffness 45 IRHD (Kg/mm)	Axial stiffness 60 IRHD (Kg/mm)	Shear stiffness 60 IRHD (Kg/mm)	Axial stiffness 70 IRHD (Kg/mm)	Shear stiffness 70 IRHD (Kg/mm)	Max. axial static deflection (mm)	Max. shear static deflection (mm)
1015GVD10	10	15	6	M4	M4X10	1,4	0,3	2,2	0,5	3,1	0,7	1,2	1,2
2019GVD18	20	19	14,5	M6	M6X18	9,1	1,8	14,5	3,4	19,8	4,7	1,8	1,5
2520GVDP18	25	20	10	M6	M6X18	5,2	1,0	8,4	1,9	11,2	2,9	1,2	1,2
2520GVDG18	25	20	17	M6	M6X18	10,0	2,4	15,8	4,3	21,9	6,5	1,2	1,2
3020GVD20	30	20	24	M8	M8X20	13,8	3,1	22,1	5,7	30,6	8,4	2,0	2,0
4030GVDP23	40	30	15	M8	M8X23	5,8	0,8	8,8	1,6	11,7	2,4	2,4	2,4
4030GVDG23	40	30	27	M8	M8X23	11,8	2,5	18,6	4,5	26,5	6,7	2,4	2,4
6060GVD25	60	60	50	M10	M10X25	12,7	2,3	20,8	4,2	30,0	6,2	7,5	7,5

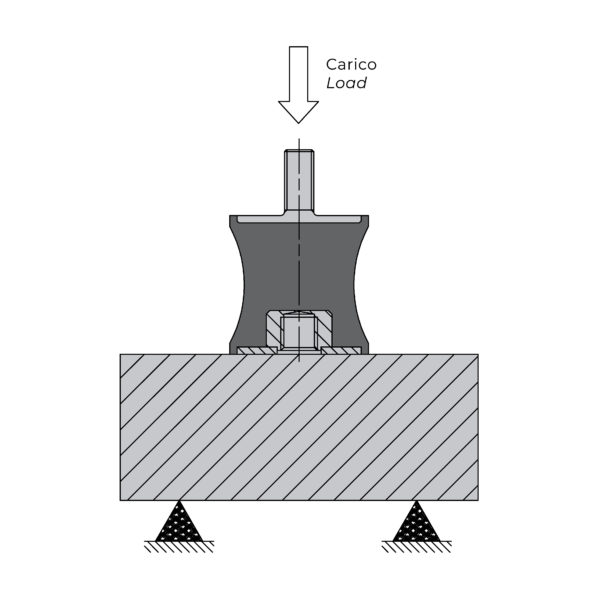

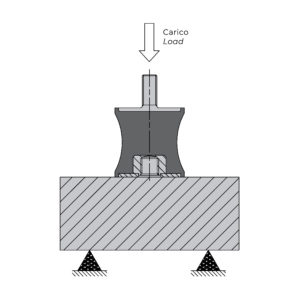

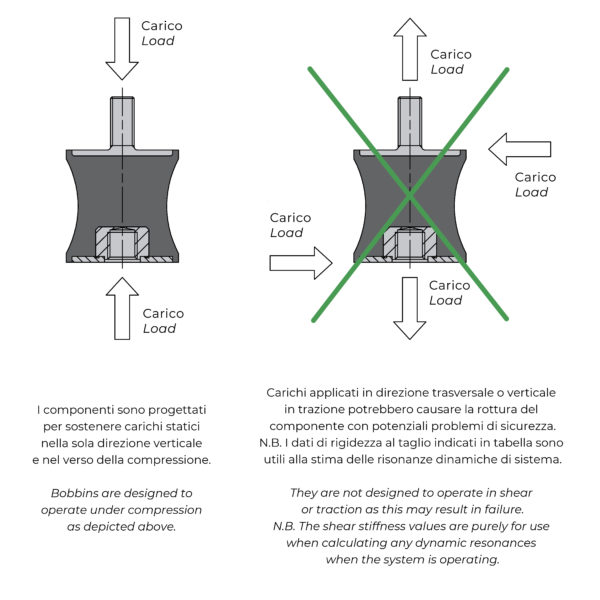

APPLICATIONS
Measurement equipment, instruments, small machinery, electric engines, pumps, radiators

STANDARD PRODUCTION
Bobbin mounts can be made with different metal parts, manufactured with different processes:
Cold formed screws and nuts – Screws: class 4.8 – Nuts: class 4
Welded screws and nuts – Washers: DD12 steel UNI EN 10111 – Screws: class 4.8 – Nuts: class 4
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%

OPTIONS AND ADDITIONAL PARTS
NEOPREN CR and anti-oil NBR rubber
Stainless steel version
Screws and nuts with a higher resistance class
Screws with a specific length in accordance to customer’s drawing
