CCF

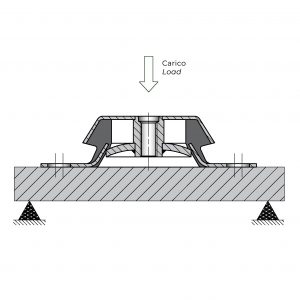

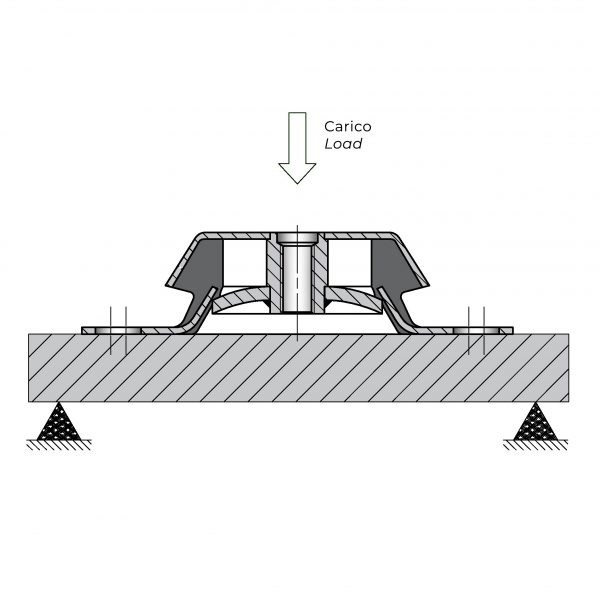

Mounts which allow a high level of insulation, especially used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). The CCF are designed with a fail-safe function making them an ideal solution for applications where safety is paramount. Axial stresses are perfectly absorbed and side deflections limited to guarantee a good stability. This range can accommodate loads between 42 kg to 960 kg per mount.

Beschreibung

Item Hardness
(IRHD)		 A B P FxM CF L S Average
stiffness
(Kg/mm)		 Max.
load
(Kg)		 Max.
deflection
(mm)
CCF603510W 45 60 35 M10 8,3X16 75-90 106 2 45 110 2,4
CCF603510M 60 60 35 M10 8,3X16 75-90 106 2 80 190 2,4
CCF603510H 70 60 35 M10 8,3X16 75-90 106 2 120 290 2,4
CCF603512W 45 60 35 M12 8,3X16 75-90 106 2 45 110 2,4
CCF603512M 60 60 35 M12 8,3X16 75-90 106 2 80 190 2,4
CCF603512H 70 60 35 M12 8,3X16 75-90 106 2 120 290 2,4
CCF623110W 45 62 31 M10 8,3X16 75-90 106 3 50 125 2,5
CCF623110M 60 62 31 M10 8,3X16 75-90 106 3 85 212 2,5
CCF623110H 70 62 31 M10 8,3X16 75-90 106 3 125 312 2,5
CCF623112W 45 62 31 M12 8,3X16 75-90 106 3 50 125 2,5
CCF623112M 60 62 31 M12 8,3X16 75-90 106 3 85 212 2,5
CCF623112H 70 62 31 M12 8,3X16 75-90 106 3 125 312 2,5
CCF773010W 45 77 30 M10 9 110 128 2 42 147 3,5
CCF773010M 60 77 30 M10 9 110 128 2 80 280 3,5
CCF773010H 70 77 30 M10 9 110 128 2 120 420 3,5
CCF823510W 45 82 35 M10 11 110 128 2 65 200 3
CCF823510M 60 82 35 M10 11 110 128 2 115 345 3
CCF924512W 45 92 45 M12 10,5 110 138 3 100 300 3
CCF924512M 60 92 45 M12 10,5 110 138 3 195 585 3
CCF924512H 70 92 45 M12 10,5 110 138 3 310 930 3
CCF1063812W 45 106 38 M12 14X18 138-146 172 3 120 420 3,5
CCF1063812M 60 106 38 M12 14X18 138-146 172 3 220 660 3
CCF1063812H 70 106 38 M12 14X18 138-146 172 3 320 960 3
CCF1063816W 45 106 38 M16 14X18 138-146 172 3 120 420 3,5
CCF1063816M 60 106 38 M16 14X18 138-146 172 3 220 660 3
CCF1063816H 70 106 38 M16 14X18 138-146 172 3 320 960 3
CCF1085016/5W 45 108 50 M16 16,5 160 190 5 120 400 3,3
CCF1085016/5M 60 108 50 M16 16,5 160 190 5 220 660 3
 CCF1085016/5H 70 108 50 M16 16,5 160 190 5 320 960 3



FIBET bell mounts can withstand up to 2g of shock forces or 5g occasional shock forces, with regards to the load, without permanent deformation or failing.

APPLICATIONS
Gensets, engines, special equipments, tooling equipments, pumps, HVAC

STANDARD PRODUCTION
Bell and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Fail-safe device: 11SMnPb37 (UNI EN 10087)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%

OPTIONS AND ADDITIONAL PARTS
Stainless steel version
Height adjuster
