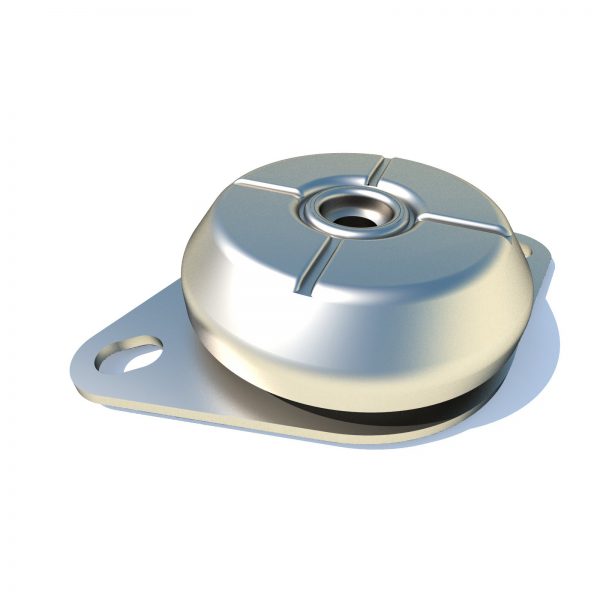

CFBMH_type1

Mounts which allow a high level of insulation, especially used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). The CFBMH are designed with a fail-safe function making them an ideal solution for applications where safety is paramount. Axial stresses are perfectly absorbed and side deflections limited to guarantee a good stability. The “Type1” range can accommodate loads between 47 kg to 1340 kg per mount.

Beschreibung

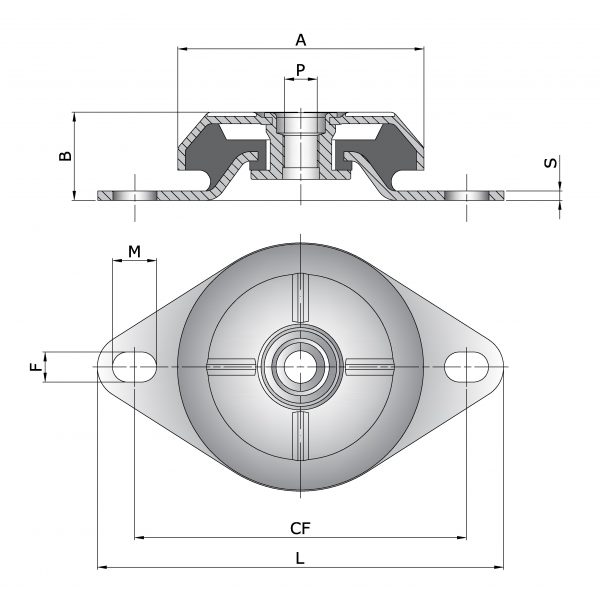

Item Hardness

(IRHD)		 A B P FxM CF L S Average
stiffness

(Kg/mm)		 Max.
load
(Kg)		 Max.
deflection
(mm)
CFBMH783010W 45 78 30 M10 9X12 110 135 2,5 47 108 2,3
CFBMH783010M 60 78 30 M10 9X12 110 135 2,5 116 267 2,3
CFBMH783012W 45 78 30 M12 9X12 110 135 2,5 47 108 2,3
CFBMH783012M 60 78 30 M12 9X12 110 135 2,5 116 267 2,3
CFBMH923510W 45 92 35 M10 10X15 123,5 150 3 50 175 3,5
CFBMH923510M 60 92 35 M10 10X15 123,5 150 3 90 315 3,5
CFBMH923512W 45 92 35 M12 10X15 123,5 150 3 50 175 3,5
CFBMH923512M 60 92 35 M12 10X15 123,5 150 3 90 315 3,5
CFBMH1063812W 45 106 38 M12 14X18 143 175 4 70 252 3,6
CFBMH1063812M 60 106 38 M12 14X18 143 175 4 150 450 3
CFBMH1063816W 45 106 38 M16 14X18 143 175 4 70 252 3,6
CFBMH1063816M 60 106 38 M16 14X18 143 175 4 150 450 3
CFBMH1254316W 45 125 43 M16 14,5X20 156 192 4 88 352 4
CFBMH1254316M 60 125 43 M16 14,5X20 156 192 4 185 740 4
CFBMH1444816W 45 144 46 M16 14
14X18		 182 216 4 100 700 7
CFBMH1444816M 60 144 46 M16 14
14X18		 182 216 4 200 1340 6,7

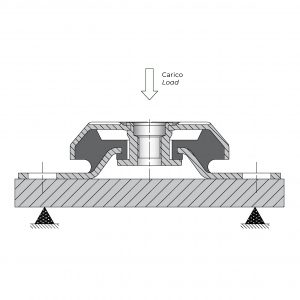

FIBET bell mounts can withstand up to 2g of shock forces or 5g occasional shock forces, with regards to the load, without permanent deformation or failing.



APPLICATIONS
Gensets, engines, special equipments, tooling equipments, pumps, HVAC

STANDARD PRODUCTION
Bell and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Fail-safe device: 11SMnPb37 (UNI EN 10087)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%

OPTIONS AND ADDITIONAL PARTS
Stainless steel version
Height adjuster
