CFBMS_type1
Mounts which allow a high level of insulation, especially used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). The CFBMS are designed with a fail-safe function making them an ideal solution for applications where safety is paramount. Axial stresses are perfectly absorbed and side deflections limited to guarantee a good stability. The “Type 1” range can accommodate loads between 7 kg to 800 kg per mount.
- Beschreibung
- MATERIALS AND APPLICATIONS
Beschreibung

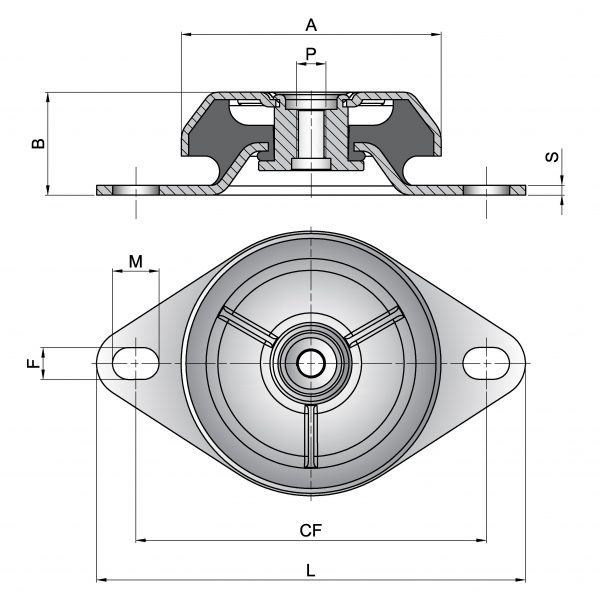

Item | Hardness (IRHD) |
A | B | P | FxM | CF | L | S | Average stiffness (Kg/mm) |
Max. load (Kg) |
Max. deflection (mm) |
CFBMS633510M | 60 | 63 | 35 | M10 | 9X14 | 89 | 110 | 2.5 | 15,8 | 60 | 3,8 |
CFBMS633610W | 45 | 63 | 36 | M10 | 15X11 | 100 | 120 | 2,5 | 14 | 60 | 4,3 |
CFBMS633610M | 60 | 63 | 36 | M10 | 15X11 | 100 | 120 | 2,5 | 31,5 | 120 | 3,8 |
CFBMS833510W | 40 | 83 | 35 | M10 | 11,5X15 | 110 | 135 | 3 | 17,8 | 80 | 4,5 |
CFBMS833510M | 60 | 83 | 35 | M10 | 11,5X15 | 110 | 135 | 3 | 44,5 | 180 | 4 |
CFBMS833512W | 40 | 83 | 35 | M12 | 11,5X15 | 110 | 135 | 3 | 17,8 | 80 | 4,5 |
CFBMS833512M | 60 | 83 | 35 | M12 | 11,5X15 | 110 | 135 | 3 | 44,5 | 180 | 4 |
CFBMS1064212W | 40 | 106 | 42 | M12 | 14X18 | 143 | 175 | 4 | 33,5 | 167 | 5 |
CFBMS1064212M | 60 | 106 | 42 | M12 | 14X18 | 143 | 175 | 4 | 67 | 335 | 5 |
CFBMS1064216W | 40 | 106 | 42 | M16 | 14X18 | 143 | 175 | 4 | 33,5 | 167 | 5 |
CFBMS1064216M | 60 | 106 | 42 | M16 | 14X18 | 143 | 175 | 4 | 67 | 335 | 5 |
CFBMS1505416W | 40 | 150 | 54 | M16 | 14X18 | 182 | 216 | 4 | 37,5 | 450 | 12 |
CFBMS1505416M | 60 | 150 | 54 | M16 | 14X18 | 182 | 216 | 4 | 78,7 | 800 | 10,2 |

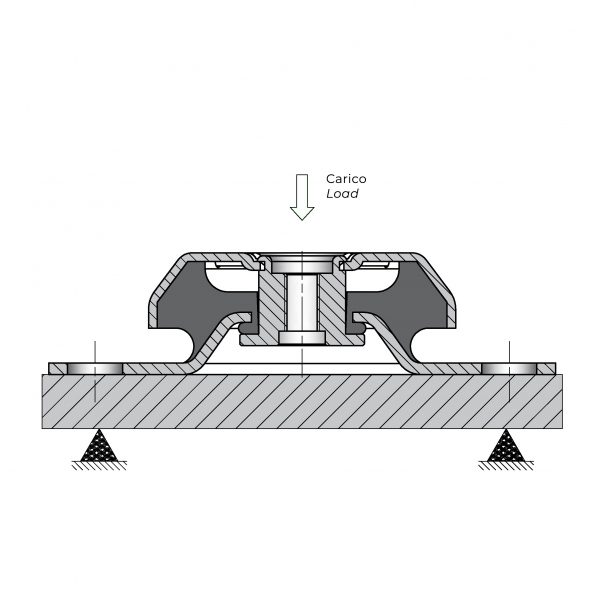

FIBET bell mounts can withstand up to 2g of shock forces or 5g occasional shock forces, with regards to the load, without permanent deformation or failing.
APPLICATIONS
Gensets, engines, special equipments, tooling equipments, pumps, HVAC
STANDARD PRODUCTION
Bell and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Fail-safe device: 11SMnPb37 (UNI EN 10087)
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
Stainless steel version
Height adjuster
