CFQ

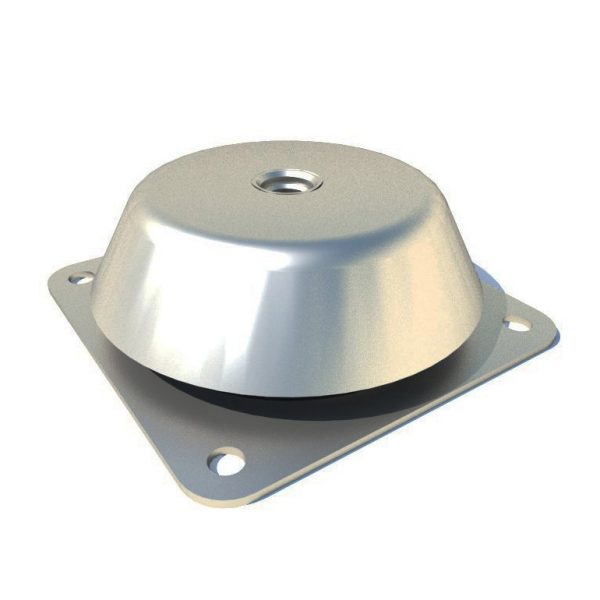

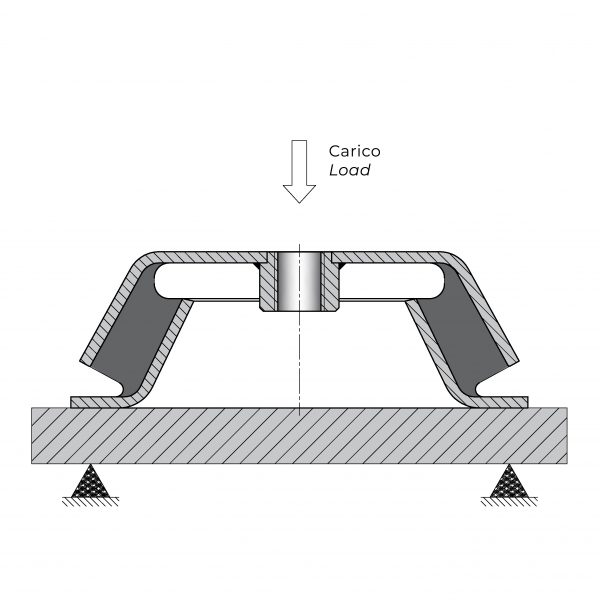

Mounts which allow a high level of insulation, especially used on generators, engines and systems with an operating frequency at around 25 Hz (1500 rpm). Axial stresses are perfectly absorbed and side deflections are limited to guarantee a good stability. The CF mounts are fully bonded, have a threaded insert to allow an easy assembling and can accommodate loads between 150 kg to 2014 kg per mount.
- TECHNICAL FEATURES
- MATERIALS AND APPLICATIONS
- DOWNLOAD

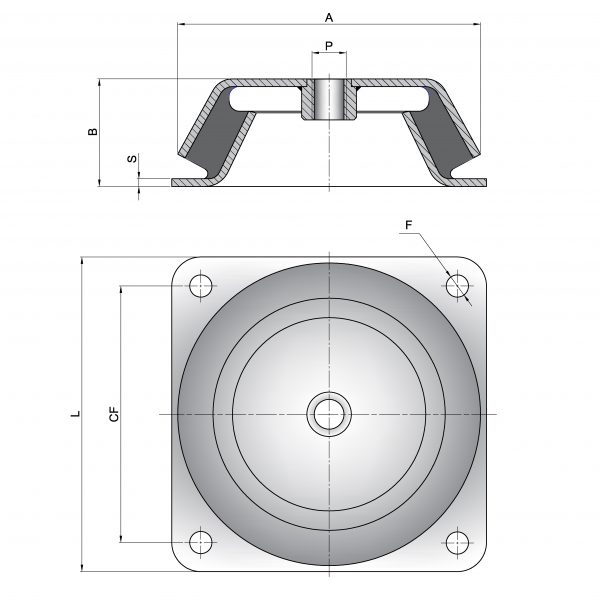

TECHNICAL FEATURES
| Item | Hardness (IRHD) |
A | B | P | FxM | CF | L | S | Average stiffness (Kg/mm) |
Max. load (Kg) |
Max. deflection (mm) |
| CFQ1505016W | 45 | 150 | 51 | M16 | n°4X13 | 132 | 168 | 4 | 150 | 600 | 4 |
| CFQ1505016M | 60 | 150 | 51 | M16 | n°4X13 | 132 | 168 | 4 | 260 | 1092 | 4,2 |
| CFQ1505016H | 70 | 150 | 51 | M16 | n°4X13 | 132 | 168 | 4 | 350 | 1365 | 3,9 |
| CFQ1776020W | 45 | 177 | 62 | M20 | n°4X13 | 150 | 184 | 4 | 210 | 756 | 3,6 |
| CFQ1776020M | 60 | 177 | 62 | M20 | n°4X13 | 150 | 184 | 4 | 340 | 1326 | 3,9 |
| CFQ1776020H | 70 | 177 | 62 | M20 | n°4X13 | 150 | 184 | 4 | 530 | 2014 | 3,8 |
APPLICATIONS
Gensets, engines, special equipments, tooling equipments, pumps, HVAC
STANDARD PRODUCTION
Bell and Flange: DD13 or DC04 steel (UNI EN 10111 or UNI EN 10130)
Nuts: resistance class 4
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
Stainless steel version
Height adjuster
