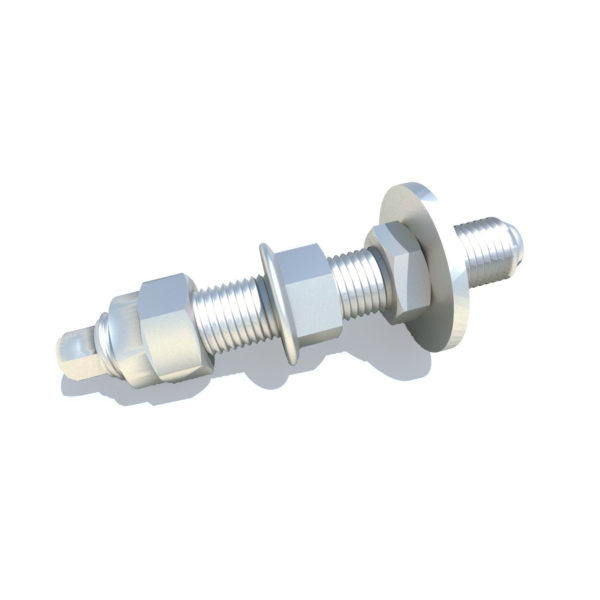

Height adjusters

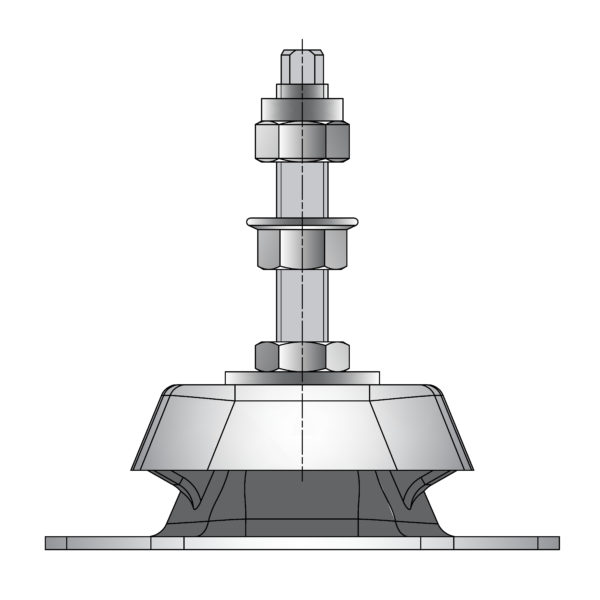

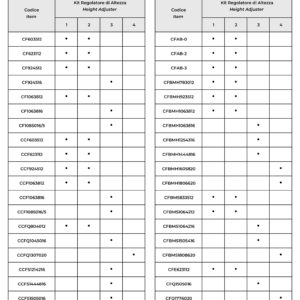

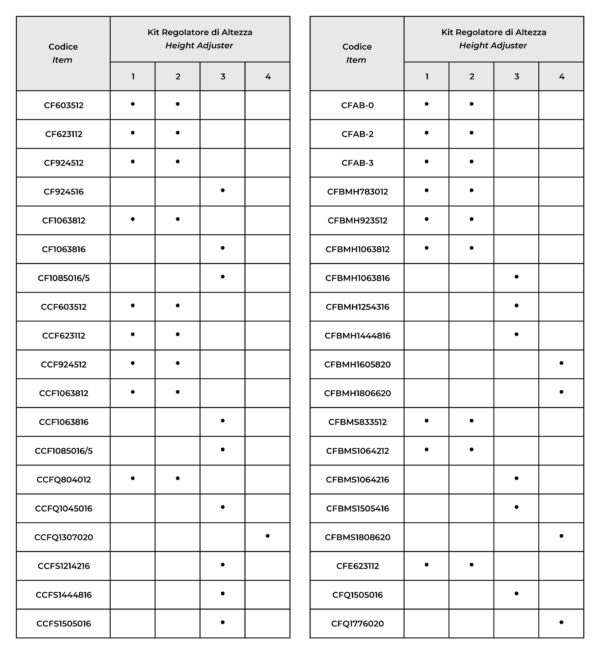

Height adjusters are available in various sizes to suit a wide range of mounts as listed in the table. The kits are supplied complete with washer and nut for fastening to the mounting, and also two nuts combined with washers for the engine foot fastening.
- TECHNICAL FEATURES
- MATERIALS AND APPLICATIONS
- DOWNLOAD
TECHNICAL FEATURES
| Codice | H | D | A | 1 washer |
2 locking washer |
3 bottom nut |
4 flange nut |
5 adjusting nut |
6 top nut |

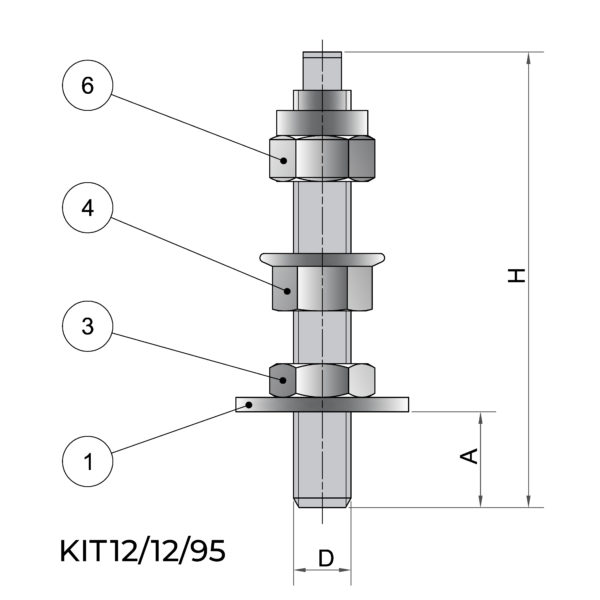

| KIT 12/12/95 | 95 | M12 | 20 | 36X14X3 | M12 | M12 | M12 | ||

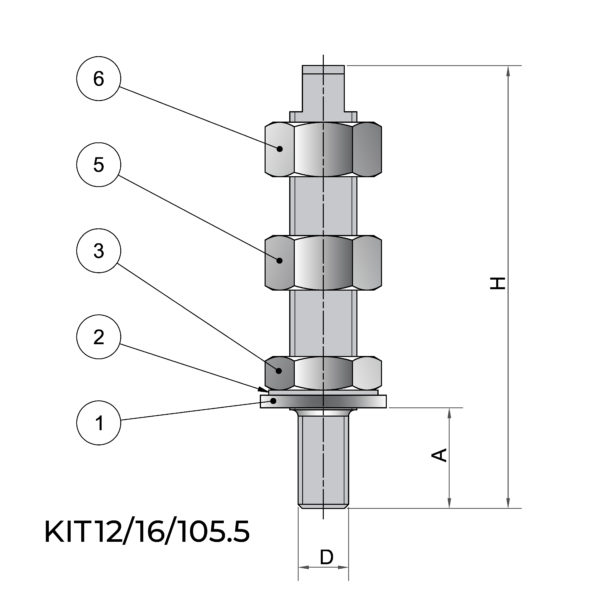

| KIT 12/16/105.5 | 105.5 | M12 | 24 | 28X15X2.5 | X | M16 | M16 | M16 | |

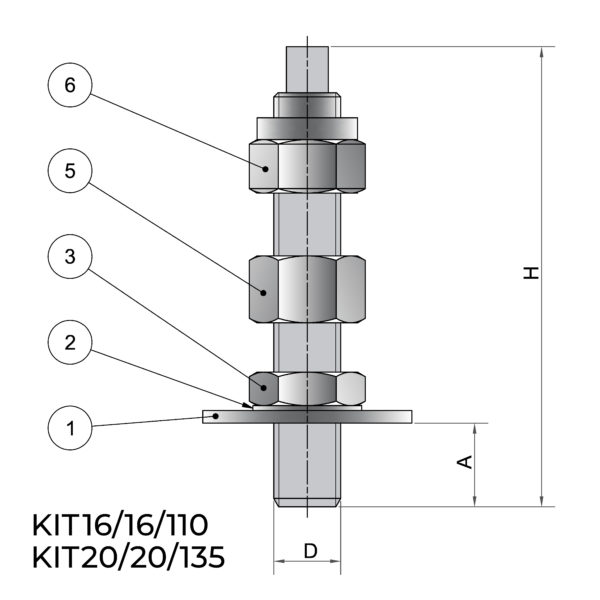

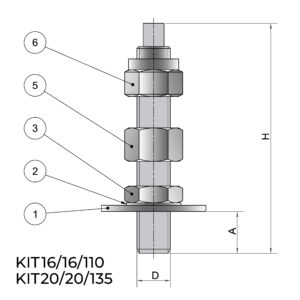

| KIT 16/16/110 | 110 | M16 | 20 | 48X17X3 | X | M16 | M16 | M16 | |
| KIT 20/20/135 | 135 | M20 | 30 | 60X22X4 | M20 | M20 | M20 |
STANDARD PRODUCTION
Washers: Steel DD12 (UNI EN 10111)
Nuts: Resistance class 4
Bolts: Resistance class 4.8
Zinc plated in accordance with CE standards, CHROME VI free, white
OPTIONS AND ADDITIONAL PARTS
Stainless steel version
Screws and nuts with a higher resistance class
