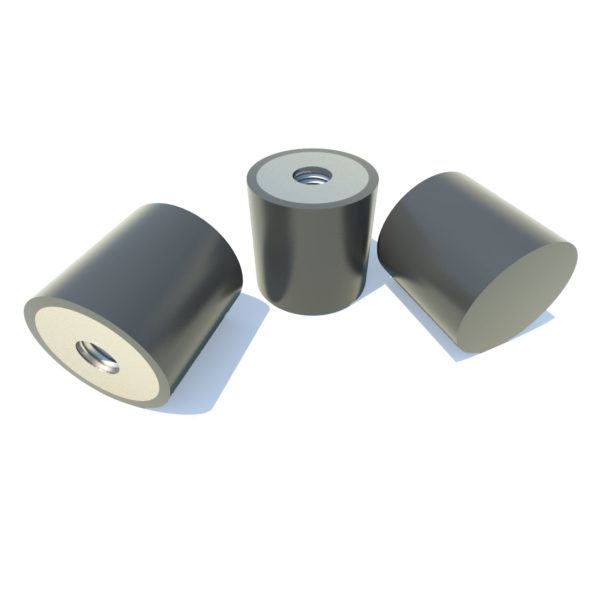

Type DE

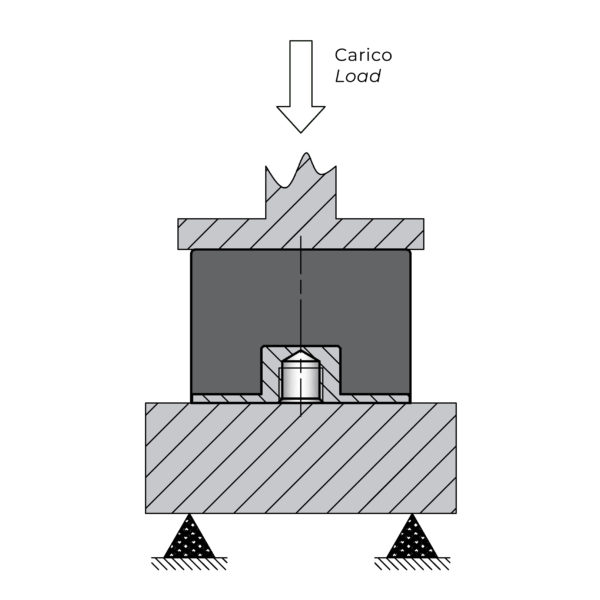

An extensive range of standard products designed to prevent shocks and overloading, thanks to their progressive absorption. They are used in a wide range of applications, whether it be to soften or cushion the contact between two adjacent parts and for use as feet to prevent vibration passing through.
The Female buffer range is available in various sizes between 16 and 100mm and can accept loads up to more than 3200 Kg.
- TECHNICAL FEATURES
- MATERIALS AND APPLICATIONS
- DOWNLOAD
TECHNICAL FEATURES
| Codice | D | H | M | Stiffness 45 IRHD (Kg/mm) |
Stiffness 60 IRHD (Kg/mm) |
Stiffness 70 IRHD (Kg/mm) |
Max. static deflection (mm) |
| 1610DE04 | 16 | 10 | M4 | 8,1 | 13,3 | 17,9 | 2,0 |
| 1610DE05 | 16 | 10 | M5 | 8,1 | 13,3 | 17,9 | 2,0 |
| 1615DE04 | 16 | 15 | M4 | 4,3 | 7,7 | 10,8 | 3,0 |
| 1615DE05 | 16 | 15 | M5 | 4,3 | 7,7 | 10,8 | 3,0 |
| 1620DE04 | 16 | 20 | M4 | 2,4 | 4,4 | 6,1 | 4,0 |
| 1620DE05 | 16 | 20 | M5 | 2,4 | 4,4 | 6,1 | 4,0 |
| 2015DE06 | 20 | 15 | M6 | 7,0 | 13,3 | 18,4 | 3,0 |
| 2020DE06 | 20 | 20 | M6 | 4,0 | 7,5 | 10,4 | 4,0 |
| 2025DE06 | 20 | 25 | M6 | 2,9 | 5,5 | 7,7 | 5,5 |
| 2030DE06 | 20 | 30 | M6 | 2,0 | 3,7 | 5,5 | 6,6 |
| 2515DE06 | 25 | 15 | M6 | 14,0 | 26,9 | 37,7 | 3,0 |
| 2517DE06 | 25 | 17 | M6 | 12,1 | 22,6 | 31,4 | 3,4 |
| 2520DE06 | 25 | 20 | M6 | 9,8 | 18,1 | 24,5 | 4,0 |
| 2520DE08 | 25 | 20 | M8 | 9,8 | 18,1 | 24,5 | 4,0 |
| 2522DE08 | 25 | 22 | M8 | 7,9 | 14,5 | 20,0 | 4,4 |
| 2525DE06 | 25 | 25 | M6 | 5,5 | 10,3 | 14,3 | 5,0 |
| 2525DE08 | 25 | 25 | M8 | 5,5 | 10,3 | 14,3 | 5,0 |
| 2530DE08 | 25 | 30 | M8 | 4,0 | 7,6 | 10,0 | 6,0 |
| 3015DE08 | 30 | 15 | M8 | 18,3 | 34,2 | 47,7 | 3,0 |
| 3017DE08 | 30 | 17 | M8 | 14,9 | 29,0 | 39,2 | 3,4 |
| 3020DE08 | 30 | 20 | M8 | 11,7 | 19,8 | 30,2 | 4,0 |
| 3022DE08 | 30 | 22 | M8 | 9,8 | 18,0 | 24,8 | 4,4 |
| 3025DE08 | 30 | 25 | M8 | 6,8 | 12,8 | 16,0 | 5,0 |
| 3030DE08 | 30 | 30 | M8 | 5,4 | 10,0 | 13,8 | 6,0 |
| 3040DE08 | 30 | 40 | M8 | 4,0 | 7,3 | 10,1 | 8,0 |
| 4020DE08 | 40 | 20 | M8 | 24,1 | 45,3 | 62,3 | 4,0 |
| 4020DE10 | 40 | 20 | M10 | 24,1 | 45,3 | 62,3 | 4,0 |
| 4025DE10 | 40 | 25 | M10 | 16,9 | 31,7 | 43,7 | 5,0 |
| 4027DE08 | 40 | 27 | M8 | 14,2 | 26,3 | 36,1 | 5,4 |
| 4028DE10 | 40 | 28 | M10 | 13,8 | 26,3 | 36,1 | 5,4 |
| 4030DE08 | 40 | 30 | M8 | 12,1 | 22,6 | 31,5 | 6,0 |
| 4030DE10 | 40 | 30 | M10 | 12,1 | 22,6 | 31,5 | 6,0 |
| 4035DE08 | 40 | 35 | M8 | 9,1 | 17,0 | 23,7 | 7,0 |
| 4035DE10 | 40 | 35 | M10 | 9,1 | 17,0 | 23,7 | 7,0 |
| 4040DE08 | 40 | 0 | M8 | 6,8 | 14,1 | 19,3 | 8,0 |
| 4040DE10 | 40 | 40 | M10 | 6,8 | 14,1 | 19,3 | 8,0 |
| 4045DE10 | 40 | 45 | M10 | 6,4 | 12,2 | 16,8 | 9,0 |
| 5021DE10 | 50 | 21 | M10 | 53,6 | 100,0 | 137,7 | 4,2 |
| 5025DE10 | 50 | 25 | M10 | 37,4 | 69,3 | 95,8 | 5,0 |
| 5030DE10 | 50 | 30 | M10 | 25,6 | 47,1 | 65,4 | 6,0 |
| 5035DE10 | 50 | 35 | M10 | 18,5 | 34,5 | 47,5 | 7,0 |
| 5040DE10 | 50 | 40 | M10 | 13,2 | 24,5 | 33,9 | 8,0 |
| 5045DE10 | 50 | 45 | M10 | 10,4 | 19,3 | 26,8 | ?? |
| 5050DE10 | 50 | 50 | M10 | 8,5 | 15,8 | 21,9 | 10,0 |
| 5822DE10 | 58 | 22 | M10 | 85,3 | 156,7 | 216,5 | 4,4 |
| 6025DE10 | 60 | 25 | M10 | 64,0 | 104,1 | 164,4 | 5,0 |
| 6036DE10 | 60 | 36 | M10 | 34,4 | 64,0 | 88,0 | 7,2 |
| 6036DE12 | 60 | 36 | M12 | 34,4 | 64,0 | 88,0 | 7,2 |
| 6040DE10 | 60 | 40 | M10 | 28,1 | 52,2 | 70,9 | 8,0 |
| 6040DE12 | 60 | 40 | M12 | 28,1 | 52,2 | 70,9 | 8,0 |
| 6045DE10 | 60 | 45 | M10 | 22,4 | 41,6 | 57,6 | 9,0 |
| 6045DE12 | 60 | 45 | M12 | 22,4 | 41,6 | 57,6 | 9,0 |
| 6050DE12 | 60 | 50 | M12 | 17,9 | 33,1 | 45,7 | 10,0 |
| 6055DE12 | 60 | 55 | M12 | 14,7 | 27,1 | 37,3 | 11,0 |
| 6535DE10 | 65 | 35 | M10 | 40,5 | 75,4 | 104,5 | 7,0 |
| 6545DE12 | 65 | 45 | M12 | 23,5 | 43,6 | 60,4 | 9,0 |
| 6550DE12 | 65 | 50 | M12 | 18,1 | 33,2 | 46,0 | 10,0 |
| 7030DE10 | 70 | 30 | M10 | 66,8 | 124,4 | 169,8 | 6,0 |
| 7030DE12 | 70 | 30 | M12 | 66,8 | 124,4 | 169,8 | 6,0 |
| 7035DE10 | 70 | 35 | M10 | 48,7 | 96,9 | 133,7 | 7,0 |
| 7035DE12 | 70 | 35 | M12 | 48,7 | 96,9 | 133,7 | 7,0 |
| 7040DE10 | 70 | 40 | M10 | 38,5 | 71,6 | 99,0 | 8,0 |
| 7040DE12 | 70 | 40 | M12 | 38,5 | 71,6 | 99,0 | 8,0 |
| 7045DE10 | 70 | 45 | M10 | 30,2 | 56,1 | 75,3 | 9,0 |
| 7045DE12 | 70 | 45 | M12 | 30,2 | 56,1 | 75,3 | 9,0 |
| 7050DE10 | 70 | 50 | M10 | 24,1 | 45,3 | 62,6 | 10,0 |
| 7050DE12 | 70 | 50 | M12 | 24,1 | 45,3 | 62,6 | 10,0 |
| 7060DE10 | 70 | 60 | M10 | 19,9 | 36,4 | 50,3 | 12,0 |
| 7060DE12 | 70 | 60 | M12 | 19,9 | 36,4 | 50,3 | 12,0 |
| 7070DE10 | 70 | 70 | M10 | 16,1 | 29,7 | 40,9 | 14,0 |
| 7070DE12 | 70 | 70 | M12 | 16,1 | 29,7 | 40,9 | 14,0 |
| 7525DE12 | 75 | 25 | M12 | 109,7 | 208,8 | 286,5 | 5,0 |
| 7540DE12 | 75 | 40 | M12 | 41,5 | 93,3 | 114,3 | 8,0 |
| 7550DE12 | 75 | 50 | M12 | 30,8 | 57,3 | 79,2 | 10,0 |
| 7555DE12 | 75 | 55 | M14 | 24,1 | 45,2 | 62,3 | 11,0 |
| 8030DE14 | 80 | 30 | M14 | 106,7 | 201,1 | 276,6 | 6,0 |
| 8040DE14 | 80 | 40 | M14 | 56,6 | 105,6 | 146,2 | 8,0 |
| 8050DE14 | 80 | 50 | M14 | 37,4 | 70,5 | 97,3 | 10,0 |
| 8060DE14 | 80 | 60 | M14 | 25,1 | 47,2 | 64,8 | 12,0 |
| 8070DE14 | 80 | 70 | M14 | 19,4 | 36,1 | 49,6 | 14,0 |
| 8080DE14 | 80 | 80 | M14 | 15,8 | 29,2 | 40,1 | 16,0 |
| 10030DE16 | 100 | 30 | M16 | 161,9 | 405,3 | 546,7 | 6,0 |
| 10040DE16 | 100 | 40 | M16 | 108,9 | 202,1 | 276,3 | 8,0 |
| 10050DE16 | 100 | 50 | M16 | 68,2 | 127,0 | 175,4 | 10,0 |
| 10055DE16 | 100 | 55 | M16 | 57,2 | 108,0 | 146,8 | 11,0 |
| 10060DE16 | 100 | 60 | M16 | 46,7 | 86,3 | 119,1 | 12,0 |
| 100100DE16 | 100 | 100 | M16 | 15,9 | 29,4 | 40,5 | 20,0 |
APPLICATIONS
Gensets, engines, tooling machinery, pumps, special equipment, HVAC.
STANDARD PRODUCTION
All the resilient stops and the buffers can be made with different metal parts, manufactured with different processes:
Cold formed nuts – Class 4
Welded nuts – Washers: DD12 steel UNI EN 10111 – Nuts: class 4
Natural rubber NR
Zinc plated in accordance with CE standards, CHROME VI free, white
Stiffness tolerance: ± 20%
OPTIONS AND ADDITIONAL PARTS
NEOPREN CR and anti-oil NBR rubber
Stainless steel version
Screws with a higher resistance class
